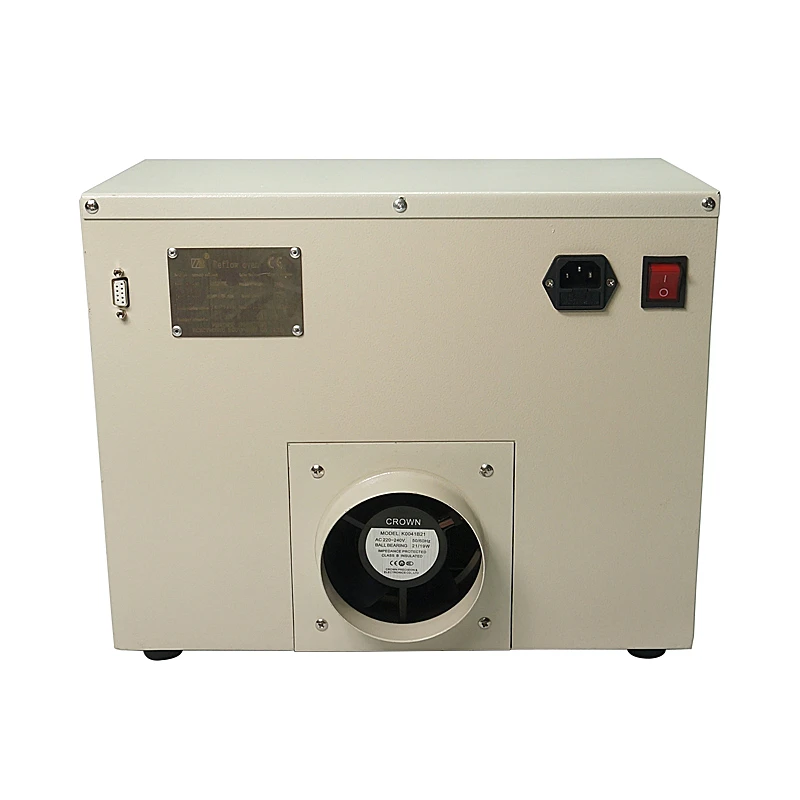

SMD smt reflow oven LY 962 700W reflow oven for IC chip removing programmable mini reflow soldering oven

LY 962 Digital display with programmable reflow welding machine

programmable 700W 110V 220V

Function:
The machine temperature control circuit adopts the domestic leading the PID algorithm, PID self-tuning and piecewise function of output power limit, has no overshoot and no owe excellent control characteristic.In a single temperature zone, by as much as 45 segment programmable infrared radiation heating and circulation heat wind, realized the temperature range of more large reflow soldering welding effect, especially suitable for the laboratory small batch patch welding components.This machine 160 * 160 dot matrix large size liquid crystal display, intuitive and convenient.Random configuration has a curve record software at the same time, can easily through the links to the PC host R232 serial download any mass temperature curve.And in real time on the computer with the graphical display curve, intuitive and easy to use.

Second, the advantage of products:
For 0 * 160 dot matrix large size liquid crystal display
2: through R232 serial ports are connected to the computer, on the computer set curve data, running monitoring curves.
3: the large memory capacity, can store up to 50 article 45 of temperature curve.
4: Shi Yingfa heat pipe heat treatment in advance, oxidation resistance, long service life.
5: the largest heating area of the same specification product, welding more PCB.

Three, technical parameters:

·         Brand Name:LY

·         Dimensions:375*350*312mm

·         Model Number:962

·         Output Power:700W

·         Temperature Stability:Excellent

·         Input Voltagle:AC220V (110V can customized)

·         Item Name :Reflow Solder Oven

·         Output Powe:700W

·         Dimensions:375*350*312mm

·         Net Weight:15kg

·         heating method:Infrared radiation heating

·         drawer size :250*180*20mm

·         stock:yes
